Durable 22HP Hydraulic WAW Diesel Tipper 3 Wheel Tricycle for African Farm Agricultural Produce Transport

Durable 22HP Hydraulic WAW Diesel Tipper 3 Wheel Tricycle for African Farm Agricultural Produce Transport



This heavy-duty WAW three-wheel diesel tipping tricycle is tailor-made for rural agricultural transportation across Africa. Equipped with a reliable 22HP diesel engine, hydraulic self-unloading cargo box and rugged mountain off-road tires, it supports both RHD and LHD steering options with full customisable configurations. It is the ideal small transport vehicle for delivering grain, fruits, vegetables, feed and farm construction materials on narrow farm lanes, muddy rural tracks and mountain village roads.





What Are The Core Technical Specifications of WAW Diesel Tipper Tricycle



Item	Detailed Parameter
Brand	WUZheng (WAW Group)
Model	WKH3B311 (RHD / LHD Optional)
Cab Type	Xiangyunhu Semi-enclosed Cab
Overall Dimension (L×W×H)	4055×1500×1750 mm
Cargo Body Dimension (L×W×Side Wall)	2350×1500×(450+300) mm
Wheel Base	2420 mm
Front/Rear Wheel Track	1240 mm
Min Ground Clearance	230 mm
Curb Weight	1250 kg
Rated Payload	2500 kg
Cab Passenger Capacity	2 Persons
Gross Vehicle Weight	3880 kg
Max Speed	50 km/h
Max Climbing Slope	15%
Min Turning Radius	3.42188 m
Engine Model	Changfa 1115E Diesel Engine
Displacement	1.194 L
Rated Horsepower	22 HP
Steering System	Worm & Wheel Steering Gear, LHD/RHD Optional & Customizable
Service Brake	Oil Brake + Vacuum Booster
Front Tire Spec	6.00-14 Chaoyang Tire
Rear Tire Spec	7.00-16 Reinforced Mountain Engineering Tire
Rated Voltage	12V
Battery Model	CK6-QW-120MF
Core Customization Item	Left-hand drive / Right-hand drive switching, cargo box size, cab color, auxiliary fittings support custom adjustment



Key Selling Points & Product Advantages Based on Actual Technical Data



1. Powerful 22HP Changfa Diesel Engine, Strong Climbing Capacity for African Mountain Farms



Adopts mature Changfa 1115E 1.194L displacement diesel engine with stable 22 horsepower output, supporting a maximum 15% climbing gradient. It delivers abundant low-speed torque, easily tackling hilly farm roads, muddy field access tracks and sloped village routes widely seen in African rural areas. The engine features low fuel consumption, stable operation under long-time heavy load and convenient spare parts sourcing across Africa.





2. Large 2500KG Rated Payload + Oversized Cargo Box, High Efficiency for Bulk Farm Goods Transport

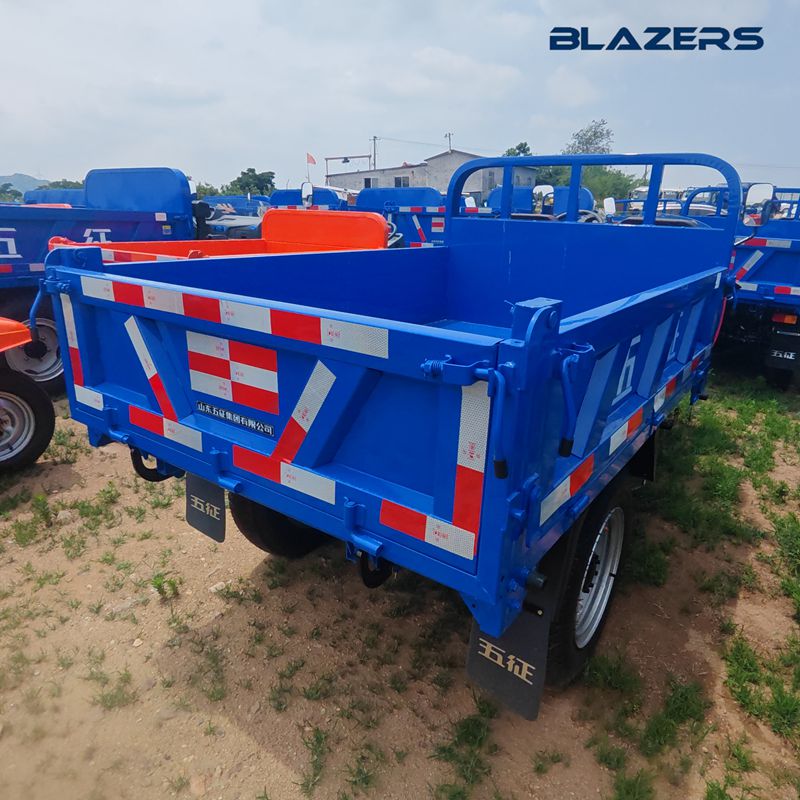

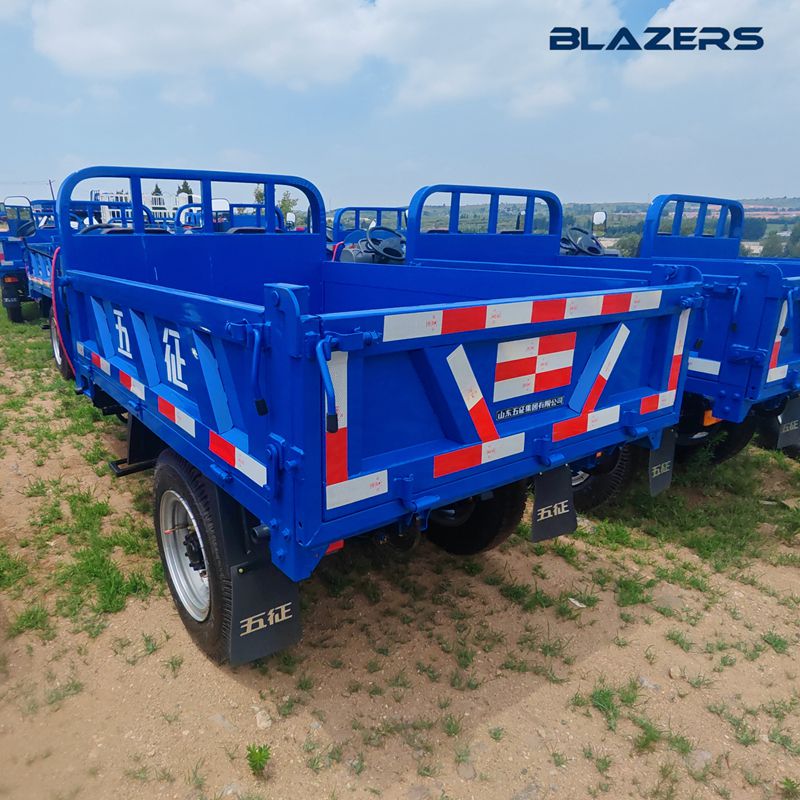

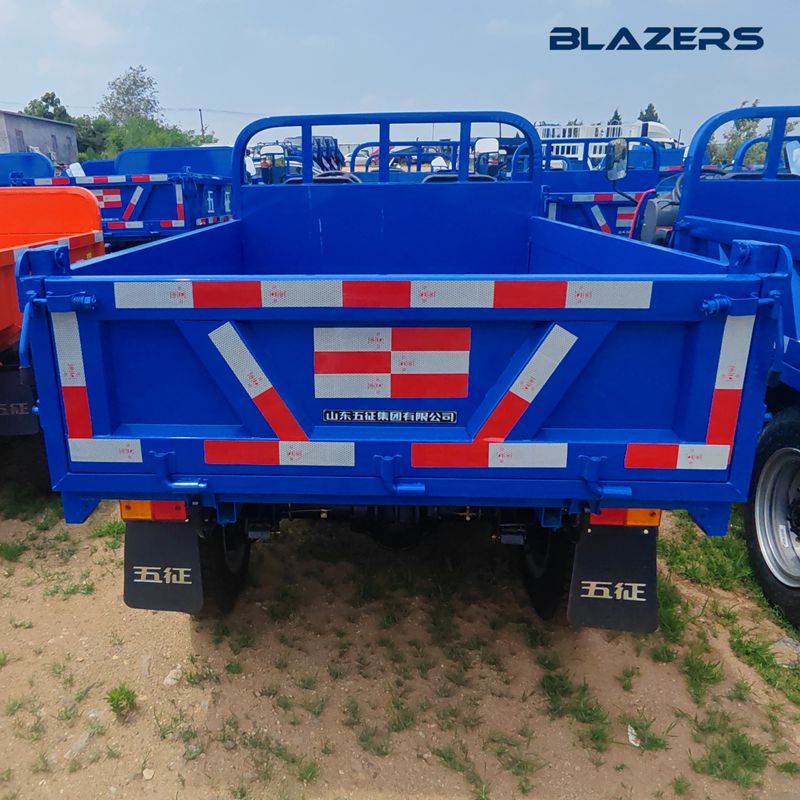

With a certified 2500kg rated payload and 2350×1500mm large cargo box with extendable side wall (450+300mm), it holds massive volumes of grain, cassava, fruits, vegetables, fertilizer and farm feed in one trip. The hydraulic tipping unloading design eliminates manual shoveling, drastically cutting labor cost and improving agricultural delivery turnover efficiency for African farmers and farm cooperatives.





3. Ultra Small Turning Radius & High Ground Clearance, Perfect for Narrow Rural Farm Lanes



The tricycle only has a minimum turning radius of 3.42 meters, flexible enough to navigate narrow village lanes, small farm field paths and tight mountain bends that large trucks cannot pass. Matched with 230mm minimum ground clearance, it effectively avoids chassis scraping on bumpy, stony and muddy rural roads, greatly reducing vehicle damage risks during daily farm transport.





4. Reinforced Mountain Off-road Tires & Reliable Vacuum Boost Brake, Safe on Complex Farm Terrain



Front wheel fits 6.00-14 Chaoyang standard tires, rear wheels adopt heavy-duty 7.00-16 reinforced mountain engineering tires with thickened anti-cut tread, outstanding anti-puncture and anti-slip performance for gravel, mud and rough mountain farm roads.

Equipped with oil brake plus vacuum booster system, braking response is sensitive and stable even under full 2500kg load, preventing skidding on slippery rainy rural roads and ensuring driving safety.





5. Dual Steering Mode Optional: LHD & RHD, Fully Customizable for All African Countries



This model supports both right-hand drive (RHD) and left-hand drive (LHD) steering layouts, fully matching traffic regulations of every African nation (RHD for Ghana, Kenya, Zambia; LHD for Nigeria, Mauritania, Côte d’Ivoire etc.). Besides steering direction, we support full personalized customization: cargo box height & length, cab exterior color, safety accessories and hydraulic unloading system fittings, to fit diverse local farm transport demands.

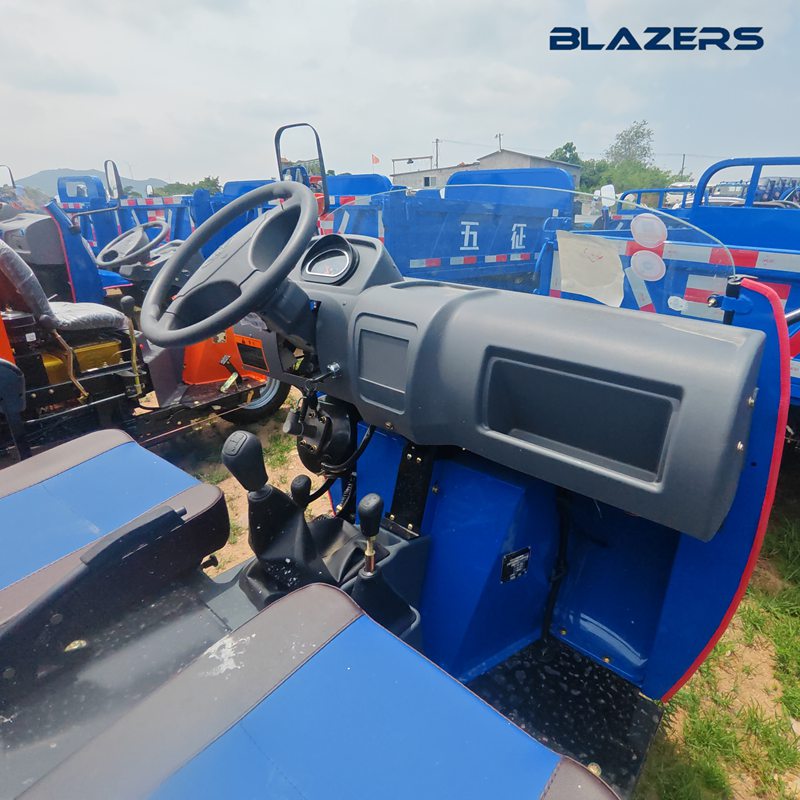

6. Semi-enclosed Comfort Cab & Stable 12V Electrical System, Adapted to African Tropical Climate

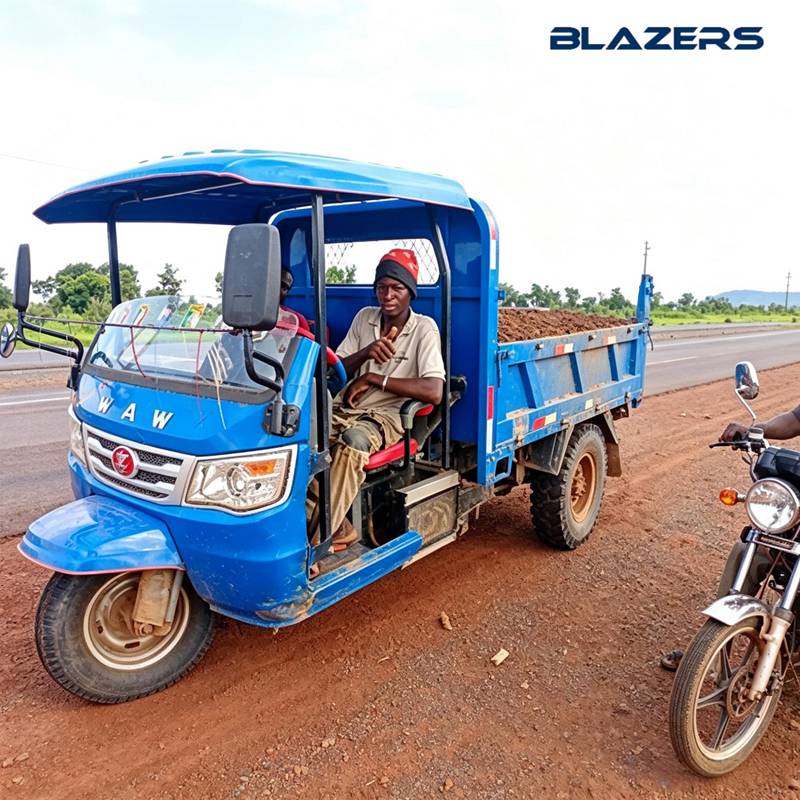

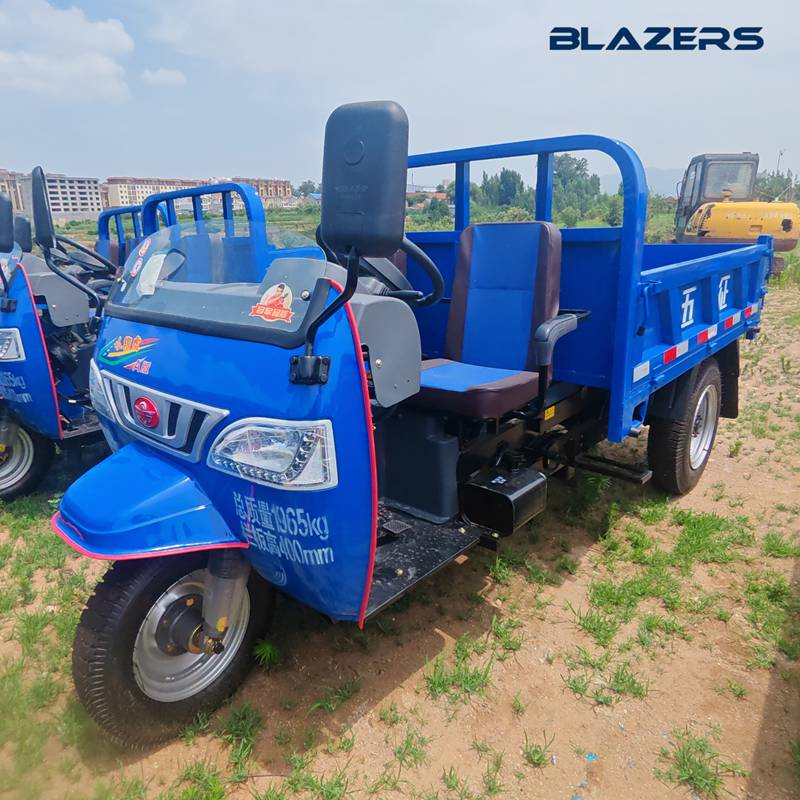

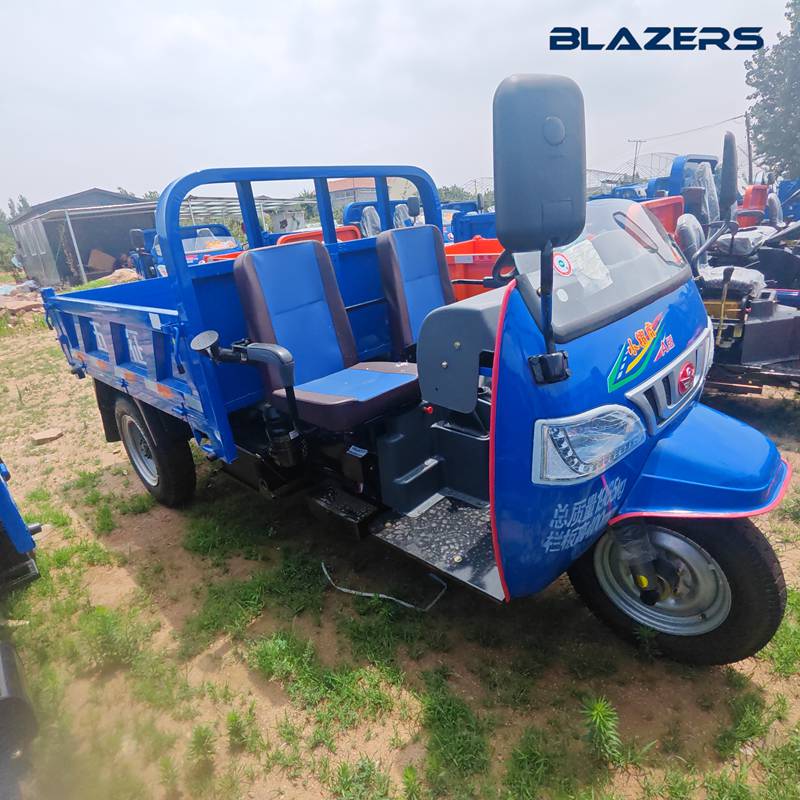

The Xiangyunhu semi-enclosed cab can shield drivers from intense tropical sunlight and sudden rain showers during farm transport; the cab holds up to 2 passengers, convenient for farm workers to travel together. Standard 12V circuit system matched with CK6-QW-120MF large-capacity battery ensures stable power supply for lighting and hydraulic equipment under high-temperature tropical working conditions.





7. Compact Lightweight Body with Stable Gross Weight, Low Maintenance Cost for Rural Users



Overall curb weight only 1250kg with total gross vehicle weight controlled at 3880kg, the three-wheel mechanical structure is simple and easy to repair. All core wearing parts including engine, tires and brake assemblies are universal mainstream models widely stocked in African rural towns, farmers can complete daily maintenance locally without expensive professional repair shops.





Main Application Scenarios Across African Farms

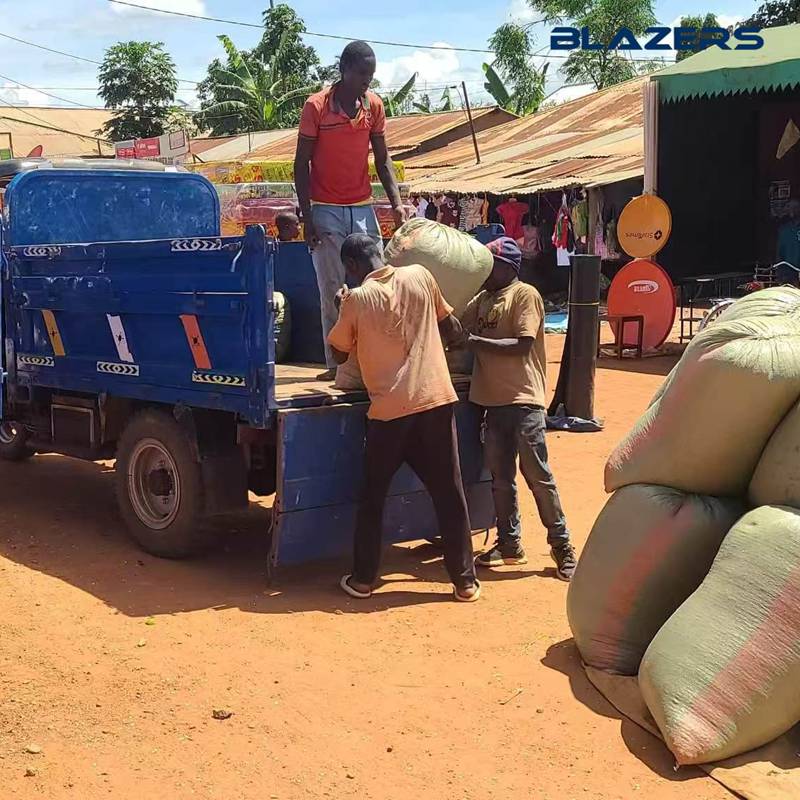

v Bulk agricultural produce delivery: grain, cassava, corn, fruits, vegetables transport from farmland to rural market wholesale points;

v Farm supplies haulage: fertilizer, animal feed, plastic film and agricultural tool transportation;

v Small-scale rural construction: sand, stone, cement delivery for village house and farm irrigation project;

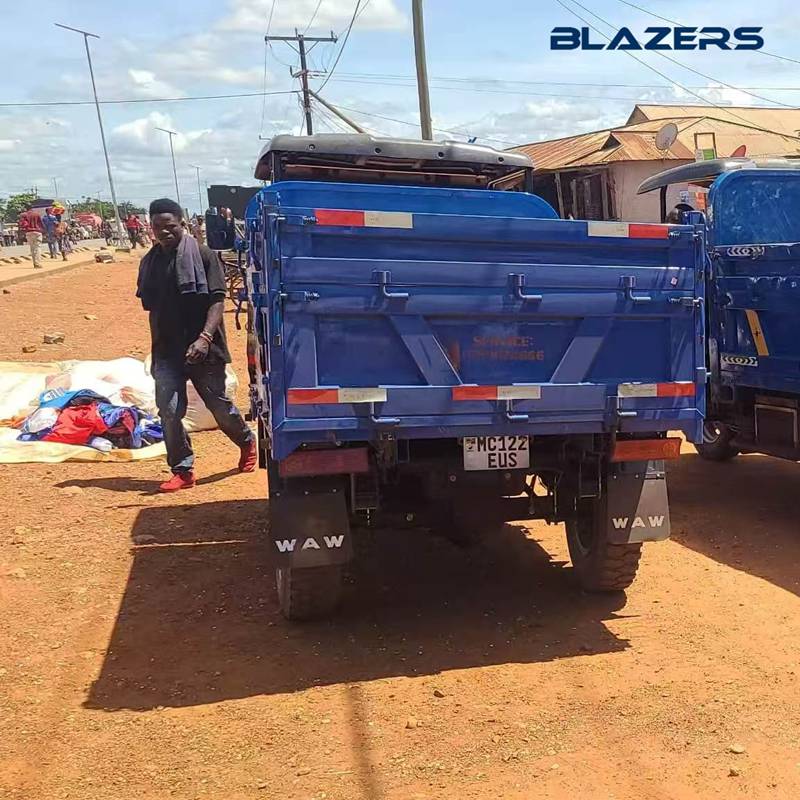

v Daily cross-village cargo transport on narrow mountain, muddy and unpaved rural farm roads;

v All-weather operation under tropical high temperature, rainy and dry seasonal climate conditions.





Related Vehicles You May Be Interested In



Ø 18HP Light-duty WAW Farm Tricycle

Ø 28HP Heavy Load Hydraulic Tipping Three Wheeler

Ø WAW Closed Cabin Diesel Tricycle



Why Choose WUZheng WAW Agricultural Tricycle



² Over decades professional manufacturing experience of farm three-wheelers, mature production line and strict finished vehicle loading & climbing test before shipment;

² Flexible steering customization (LHD/RHD) and multi-configuration adjustment, fit all African regional traffic rules and farm transport requirements;

² Complete set of formal export certification documents for smooth customs clearance at all African ports;

² Universal spare parts compatible with local African market, stable long-term after-sales technical support;

² Factory direct sales with competitive price, cost-effective for individual farmers, farm cooperatives and agricultural logistics fleets.



Our Service Guidelines



ü Reply customer inquiries within 12 hours, provide full parameter sheet and official formal quotation;

ü Design exclusive customized scheme including steering direction, cargo box size and cab fittings based on target African country’s demand;

ü Supply full set of export qualification certificates and factory quality inspection reports;

ü Provide professional operation and tropical climate maintenance training for local drivers and repairmen;

ü Real-time tracking of sea logistics progress, timely update shipment and delivery information.



FAQ



Q1: Can I choose LHD or RHD steering according to my country’s traffic rules?



Yes, this WAW model supports both left-hand drive and right-hand drive steering layout, we can customize steering direction freely as your local regulation.



Q2: Is the 22HP engine powerful enough for climbing mountain farm roads with full load?



Absolutely, it reaches 15% max climbing slope, the low-speed high torque output can easily pull full 2500kg payload up rural hills.



Q3: Are rear mountain tires suitable for muddy farm roads in rainy seasons?



The reinforced 7.00-16 mountain engineering tires feature deep anti-slip thick tread, effectively preventing slipping and puncture on muddy, stony farm tracks. Q4: What other parts can be customized besides steering mode? We support custom cargo box dimension, cab color, hydraulic unloading speed, additional guard rails and warning lights as customer requests.
